Products Description

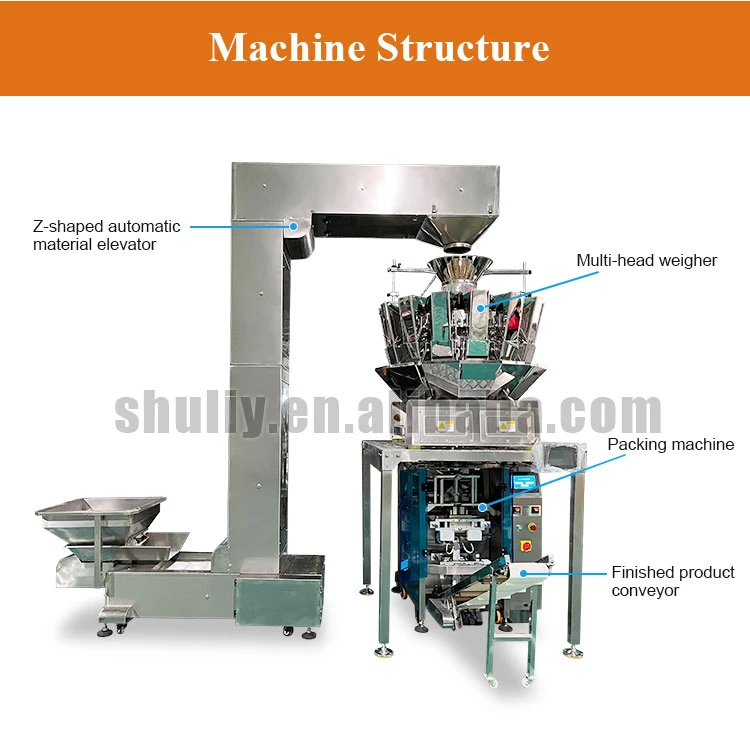

The plantain chips packaging machine is a fully automated solution, compatible with combination scales, screw scales, and liquid filling machines to meet various filling requirements. Its extensive packaging capabilities include liquids, pastes, granules, powders, and irregularly shaped items, demonstrating exceptional versatility. User-friendly, the machine features PLC control from reputable international brands and a touch screen interface for seamless operation. With a built-in frequency control device, operators can easily adjust the speed within a defined range. Integrated automatic detection and fault alarm systems ensure efficient monitoring and safety. Customizability is achieved through selectable station configurations based on production requirements. Crafted with high-quality stainless steel in all material contact areas, the machine upholds stringent GMP standards for hygiene and quality assurance.
Specification
|
Bags Length |
50-300mm |
||
|
Bag Width |
50-200mm |
||
|
Film Width |
420mm(Max.) |
||
|
Packing Speed |
30-85 packet/min |
||
|
Gas Consumption |
0.45m3/min |
||
|
Air Pressure |
0.65Mpa |
||
|
Power |
220V AC 50HZ,single phase,2.2kw |
||
|
Packaging Film |
Complex film(OPP/CPP,OPP/PE,PET/PE etc) |
||
|
Dimension |
L1600*W1150*H1480mm |
||
|
Net Weight |
580kg |
||
Application
The plantain chips packaging machine suit for all kinds of granules snacks, biscuits, cookies, chips, popcorns, chocolate, candies, gummies, nuts, dates, peanuts, seeds, coffee beans, tea, cereals, grain, dried food, dried fruits, dried vegetables, rice, sugar, pickles, salt, noodles, pet food, beef jerky, pills, capsules, herbs, bolts & nuts, hardware parts, tissue paper packets, wet wipe packets, etc.
Feature
1. Equipped with safety protection to comply with the firm's safety management requirements.
2. PLC and HMI controllers ensure easy operation and maintenance.
3. Servo film pulling system with photocell ensures accurate cutting positions.
4. The touch screen can store technical parameters for various products, eliminating the need to reset when switching products.
5. Separate circuit boxes for power control and pneumatic control provide low noise, good sealing, and enhanced stability.
6. Automatically completes product feeding, forming, filling, gas flushing (exhausting), sealing, cutting, date printing, and counting.
7. Includes an error indication system to help address issues promptly.
8. Optional devices include gusseted bags, linked bags, punching devices, etc.
