Granule Packaging Machine





The granule packaging machine has high output, requires few people, automatic weighing, is simple and fast, has high speed, saves a lot of materials, has small product weight error, beautiful finished products, uniform and neat sealing positions, and the whole machine is made of stainless steel, clean and hygienic, safe and secure. The packaging machine can choose supporting equipment such as ribbon coding machine, nitrogen filling system, climbing conveyor belt, feeder, multi-packing device, rounded corner punching bag, etc. Applicable to various packaging materials, BOPP film, composite PE film, aluminized film, color-aluminum foil film, color transparent composite film.



Bag style	Back seal(customizable)
Packing speed	32-72 bag/min or 50-100 bag/min
Bag length	30-180mm
Bag width	25-145mm (Need to replace the Former)
Filling range	22-220ml
Power Consumption	1.8kw
Weight	250kg
Dimensions	650*1050*1950mm
Carton Size	1100*750*1820mm

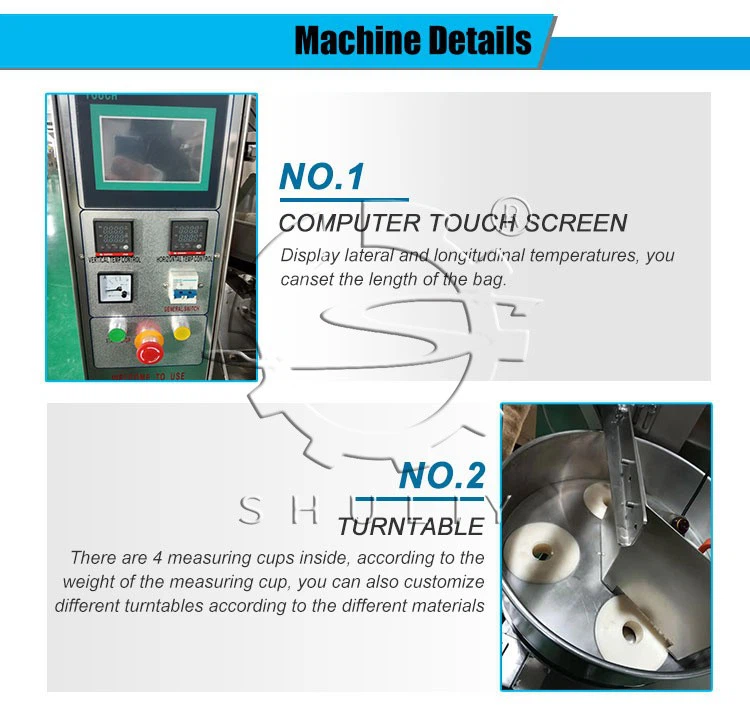

1. The computer touch screen controls the operation of the whole machine, and it is more convenient to be equipped with manual buttons.

2. Independent temperature control for horizontal and vertical sealing, easy to adjust, optional striped mesh and flat sealing style.

3. 304 stainless steel turntable, double-sided fine grinding chassis, flatter and longer life, wear-resistant and corrosion-resistant, safe and reliable.

4. A ribbon coding machine can be installed, and it is very convenient to print the production date (6*7MM large fonts can be customized).

5. The granule packaging machine is equipped with a 30L large barrel, made of food-grade 304 stainless steel, safer and corrosion-resistant with large capacity.



1. Suitable for packaging of granular solid materials such as puffed food, peanuts, melon seeds, rice, seeds, monosodium glutamate, white sugar beans, popcorn, small biscuits, etc.

2. The granule packaging machine can automatically complete bag making, metering, feeding, sealing, slitting, counting, and can be configured with printing batch number and other functions according to customer requirements. The machine can be used for packaging of various medium and large packaging products.
3. Adopt touch screen to operate PLC control, drive stepper motor to control bag length, stable performance, convenient adjustment, accurate detection. Intelligent temperature controller, PID adjustment, ensure that the temperature error range is controlled within 1.



1. The whole granule packaging machine has a compact structure, firm, reasonable design and simplicity.
2. Adopt photoelectric eye control system, stepper motor film pulling, reliable, stable performance, low noise.
3. Adopt frequency conversion speed regulation, more stable operation, low failure rate.
4. Fully automatic from metering, filling bag making, date printing to product output is completed at one time.
5. The spring pressure principle, pneumatic slitting, five-piece packaging is more stable.
6. The granule packaging machine can reduce the labor intensity of the operator and effectively improve production efficiency.
7. The bag length and sealing position can be automatically adjusted according to the length of the bucket.
8. The touch screen displays the screen, which is easy to operate and the working status of the machine is clear.
