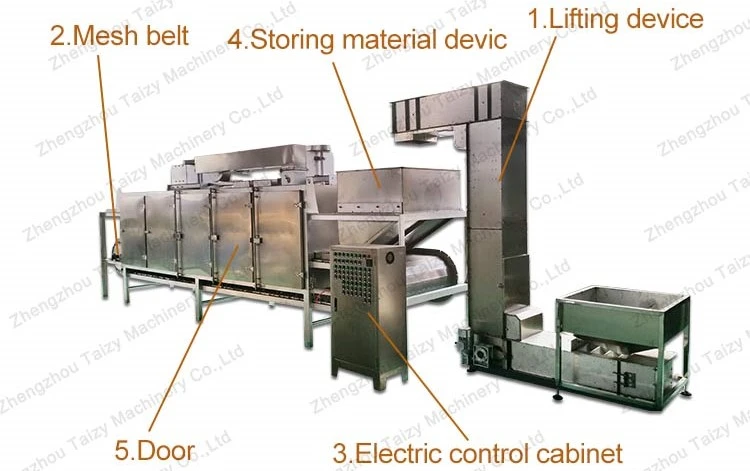

The continuous roasting machine is mainly used for roasting granular materials such as peanuts, almonds, broad beans, coffee beans, sunflower seeds and nuts. The roasting machine is composed of the following parts, the rack, the conveyor belt, the heating device, and the thermal circulation device. The roasting equipment has a device to control the thickness of the material layer, which can make the hot air penetrate evenly and make the roasting effect better. The heating device and thermal circulation device make the circulating hot air in the machine more uniform.
|
Model |
TZ-2 |
|
Capacity |
100-300kg/h |
|
Power |
2.6kw |
|
Dimension |
5800*1450*1550mm |
|
Roasting Power |
24-48kw |
1. The chain-plate conveying structure makes the material move forward smoothly without causing damage to the material. The roasted material has a better effect and no damage.
2. High roasting quality: The hot air circulation system uses multiple circulating fans, and the air volume of each air outlet is uniform so that the materials can be heated evenly.
3. Constant temperature roasting: the continuous roasting machine adopts temperature controller and temperature sensor to control the temperature to keep the temperature in a stable range.
4. Convenient and flexible adjustment: the speed can be changed through the electromagnetic governor. During the continuous roasting process of materials, according to the technical requirements of different materials, by adjusting the thickness of materials, conveying speed, and heating temperature, different materials can be roasted in the same equipment.
5. Simple operation: the continuous roasting machine adopts an automatic temperature control device, and the heating speed is fast. The instrument can display the current temperature and the set temperature for easy observation and adjustment. The temperature can be adjusted from 0-300°C according to the requirements of different materials, which is convenient to set the appropriate temperature.
6. In order to ensure uniform roasting of materials, it is necessary to set reasonable material thickness, running speed of the conveyor belt, and roasting temperature.
