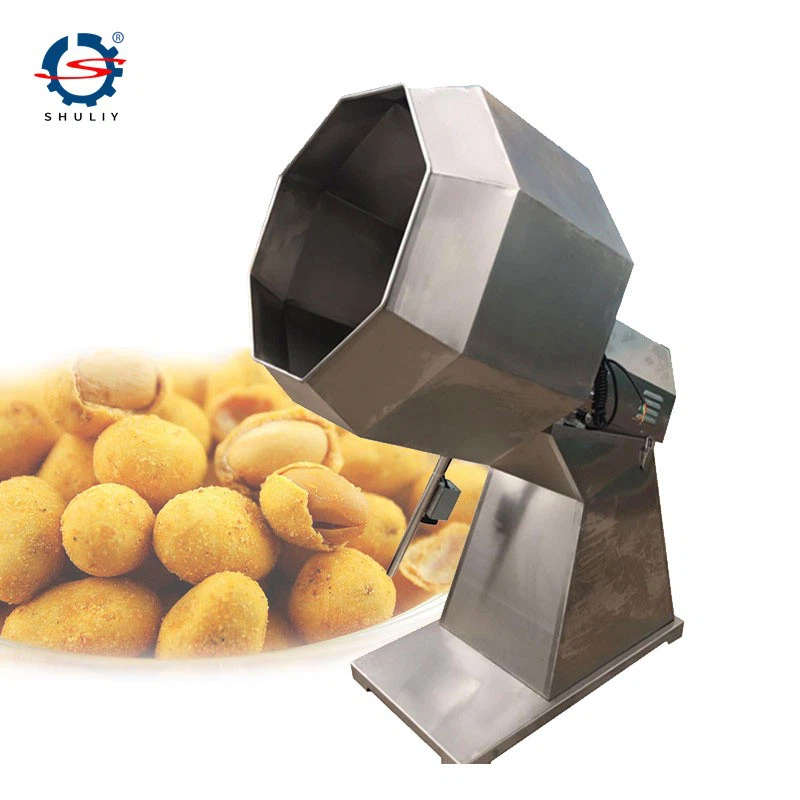

Commercial Seasoning Mixer

The commercial seasoning mixer is equipped with a PLC-controlled variable-frequency system offering three operating modes, allowing the mixing speed to be freely adjusted. Designed with no hygiene dead zones, it is easy to clean and ensures a clean, sanitary mixing chamber, delivering consistent and reliable product quality.
The machine features a PLC touch screen control system, making calibration simpler, faster, and more intuitive. It also supports special functions such as final batch operation and direct oil spraying when the oil tank is full, improving operational flexibility and production efficiency.

Model	SL-60
Power/Voltage	220V
Size	1400*1100*1700CM
Load bearing range	20-25kg
Weight	130kg

1. Featuring an innovative design, the machine uses a top-mounted DC oil spraying system. Oil is fed by gravity flow, which shortens the oil piping and prevents residue inside the pipeline.

2. The oil dosing system ensures accurate measurement, with a single dosing tolerance controlled within ±50 g.

3. The feeding conveyor adopts a positioning sensor switch combined with motor-driven transmission for precise material positioning. Compared with traditional conveyors, it offers a cleaner appearance, higher efficiency, easier hygienic cleaning, and lower operating costs.

4. The octagonal mixing drum is equipped with automatic variable-frequency control for rotation direction and speed, allowing it to meet different production requirements. This design ensures more uniform mixing, improved processing results, and eliminates hygiene dead zones for easy cleaning.

5. The entire machine is controlled by a Siemens PLC system, providing stable operation, intelligent control, and a user-friendly, easy-to-understand operating program.

1. The main frame is fabricated from SUS304 stainless steel square tubing (50×50×1.8 mm), providing excellent strength and corrosion resistance.

2. The drum body is made of 1.5 mm SUS304 stainless steel sheet, precision laser-cut for high dimensional accuracy.

3. The outer panels of the main frame use 2.0 mm SUS201 stainless steel sheets, laser-cut and hydraulically formed for a clean appearance and enhanced structural rigidity.

4. The drive system is equipped with a 1.1 kW horizontal planetary gear motor with a 1:45 reduction ratio, ensuring stable torque output and smooth operation.

5. All welding joints on the main frame and octagonal drum are completed using full laser welding technology, resulting in no deformation, no burrs, and no welding slag. The weld seams are uniform, smooth, and bright, delivering a robust structure with an attractive, deformation-resistant design.
