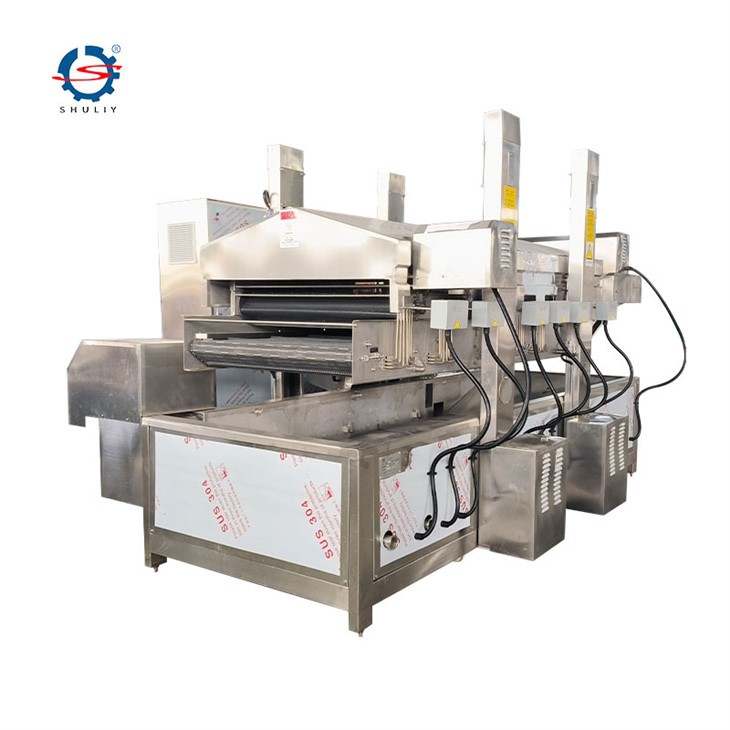

Automatic Fryer Machine

About the automatic fryer machine, there are gas heating, electric heating and thermal oil heating types. And we can make the suitable length, width and height according to your needs.



1. When the electric heating automatic fryer machine starts the lifting device, it lifts up with the heating pipe. The heating pipe is 304 stainless steel 2-2.5mm seamless welding. Each heating pipe is independent and can be pulled out for cleaning. The round heating tube has stable heating, is convenient for hygiene and cleaning, and has a long service life of 10-20 years.

2. Regarding the energy consumption of the machine, take a frying machine with a length of 5.5 meters and a network bandwidth of 600mm as an example.
The energy consumption of the electric heating automatic fryer machine is 80-90kw/hour, the heating temperature is 165-220°C, the oil capacity is 800-1000kg, and the average oil consumption is 15-20%/hour.
The energy consumption of the gas-heated frying machine is 300,000 calories, and it uses a Riello burner.

3. The scraping part of the electric or gas heated fryer is located below the lower mesh belt, above the pot body, and between the two.
The scraping part of the frying machine heated by thermal oil is below the heat exchanger, above the pot body, and between the two.

4. Generally, there are two temperature control probes. The temperature measurement of the two temperature zones is more accurate. The imported temperature control probes are used, and the temperature controller is from Honeywell.
5. The gas pipeline is welded twice, the first time using special welding rods, and the second time using argon arc welding.
The pipes for circulating heat transfer oil are used for external heating. The heat transfer oil boiler is heated, and the heat transfer oil is heated to 230°C and then passed to the heat exchanger of our fryer to heat the oil in the fryer. cooking oil. (The maximum temperature can reach 310℃)

6. The automatic fryer machine has an oil level protector and an alarm for lack of oil level to stop the heating function.



Frying temperature	165-200°C
Temperature control accuracy	±1°C
Frying time	40s--3min, Frequency can be adjusted
Fryer inlet height	900mm
Dimension	5700*2000*2250mm
Mesh belt width	800mm
