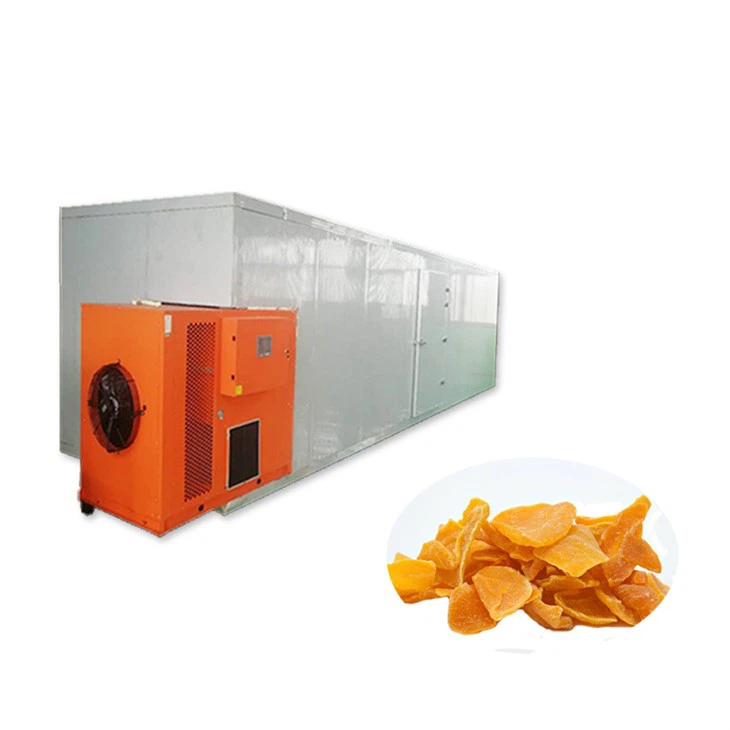

Food Drying Machine

The food drying machine uses electricity as a heat source and uses an axial fan to heat the air in a convective manner to

the heat exchanger. The hot air layer flows through the baking tray and the material for heat transfer. Fresh air enters the

drying box from the air inlet to supplement and then is discharged from the moisture outlet. The fresh air is continuously

replenished and the hot and humid air is continuously discharged, to maintain the dryer box. The appropriate relative

temperature inside saves energy. Most of the hot air circulates in the box to complete the drying.

Model	SL-1	SL-2	SL-4	SL-6	SL-7
Number Of Plates	24	48	96	144	196
Motor	9kw	12kw	18kw	22kw	30kw
Area Of The Plates(㎡)	7.62	11.52	23.04	34.56	46.08
Productivity	50kg/8h	100kg/8h	200kg/8h	300kg/8h	400kg/8h
Dimension(m)	1.55*0.8*2.2	2.1*2.1*2.3	2.1*2*2.3	2.6*2.1*2.3	4*2*2.3

1. The temperature range is pre-set, which can realize the automatic control of the drying temperature. The standard box type

has four specifications: 24 trays, 32 trays, 48 trays, and 90 trays, and can also be customized according to needs.
2. The operation of the equipment is simple and convenient: press to start, and the equipment will automatically control the

temperature and humidity in the baking room according to the set baking parameters or baking curve until the baking is over,

and a prompt will sound. The labor intensity of the user is greatly reduced.
3. Strong equipment stability: Especially for the actual situation of unstable rural electricity voltage, the wide voltage design and

electronic components are used to ensure the operation stability of the equipment.

Wood drying equipment, honeysuckle dryer, chrysanthemum dryer, vegetable dehydrator, sea cucumber dryer, hot air drying

furnace, rotary drum dryer, coal-fired hot air stove, series of full-pressure dust-free furniture spray/baking paint Rooms, etc. Can

be widely used in wood drying, food drying (chili powder, garlic slices, vegetable dehydration, fish fillets, etc.), chemical building

materials drying (spraying, painting, dehydration drying equipment, paper product drying, cartons, paper cups, etc., and drying

of Chinese herbal medicines) and other related industries.
