Seed Cleaning Machine





This multifunctional seed cleaning machine can thresh, shell, and winnow a variety of crops and agricultural by-products. It can winnow and screen a wide range of crop seeds (such as wheat, corn, and soybeans) and agricultural by-product seeds, achieving seed cleaning. It can also be used to clean commercial grain and double as a grader.



Function	Feeding elevator, Air screen, cyclone, dust collector, vibration screen
Size L×W×H	4300*1800*3200 mm
Weight	1750 kg
Capacity	5 T/H(Based on process wheat)
Voltage	380V(220V/440V need customized) 50/60hz 3 phase
Screen dimension	2000mm*1000mm*4 layers





1. The seed cleaning machine is a basic cleaning device that combines air separation and screening. Its air separation function is primarily accomplished by a vertical air screen.

2. The airflow speed is adjusted according to the critical velocity of the grain and impurities to achieve separation. Lighter impurities are drawn into a spiral dust collector for centralized discharge, while finer materials pass through the air screen and enter the vibrating screen.

3. The vibrating screen can be configured with two, three, or four layers to remove both large and small impurities simultaneously, separating the selected material into large, medium, and small particles, which are then discharged from different outlets. The vibrating screen's separation principle is determined by the geometric characteristics of the material. Different grain types and varieties have different sizes, and screens of different specifications can be selected to meet the sorting requirements.

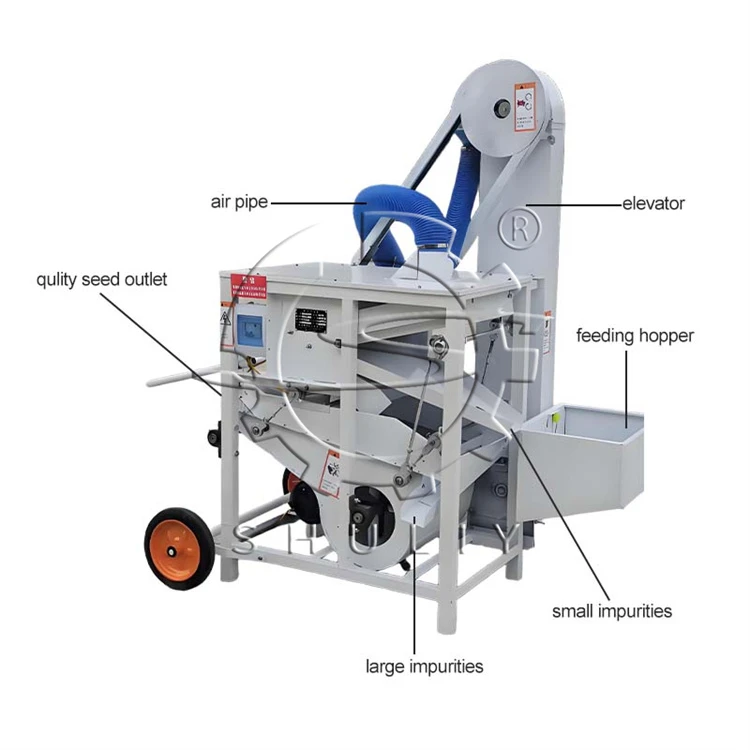

1. The seed cleaning machine consists of a lifting device, screening device, air separation device, electronic control device, and travel device.
2. The overall structure is compact, easy to operate, and flexible, making it suitable for towing by various vehicles.
3. The entire seed cleaning machine is easy to clean, effectively preventing contamination and ensuring seed purity.

4. Travel wheels facilitate mobility and can also be fixed for simultaneous use with a production line.
5. The seed cleaning machine utilizes an ultra-low-speed elevator to reduce seed breakage.
