Products Description

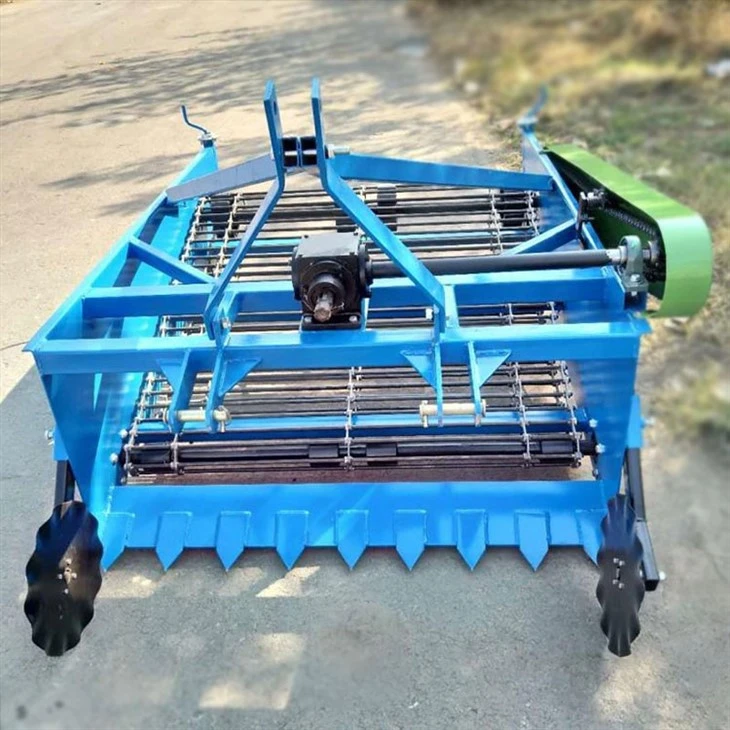

The potato picker machine is mainly used for harvesting underground root vegetables such as potatoes, sweet potatoes, peanuts, onions, garlic, yams, and taro. High efficiency, low breakage rate, fast soil leakage, long service life, not blocked by grass, simple structure, long service life
Products Parameter
Model |
4U-1 |
4U-2 |
Harvesting rows |
1 |
2 |
Width of cut (mm) |
600 |
900/1300/1600/1800 |
Depth of cut (mm) |
100-250 |
100-250 |
PTO Rotation speed (r/min) |
540-720 |
|
Weight (kg) |
160 |
260/335/390/440 |
Tractor power (hp) |
20-30 |
40/50/70/80 |
Working Principle
The potato picker machine is fixed to the rear suspension of a large four-wheel tractor through a bracket. The transmission is connected to the output shaft of the tractor through the power input shaft. Insert the shovel into the soil (if the depth is not enough, the upper pull rod behind the tractor can be shortened), shovel the potatoes from the soil, extract the potatoes from the soil, and complete the potato harvest.
Products Features
1. The potato picker machine adopts a double-lift chain structure, and the lifting chain transmission is driven by wear-resistant rubber wheels. It has low noise and overload protection functions, increases the mixed row gap, and can increase the ridge rate of sweet potatoes.
2. The potato picker machine not only crushes the hard shell of the ridge ditch on the ridge body, but also ensures the ditching depth of the shovel, digs the sweet potatoes fully, does not hurt the sweet potatoes, and reduces power consumption.
3. It adopts high-quality disc cutters to cut off potato seedlings and other weeds in time, effectively prevents the phenomenon of dragging stubble, and has the characteristics of long life, reliable performance, and stable work.
4. The structure is compact, the potato tuber yield is high, the potato tuber damage is less, it is safe and reliable, and the efficiency is high.
