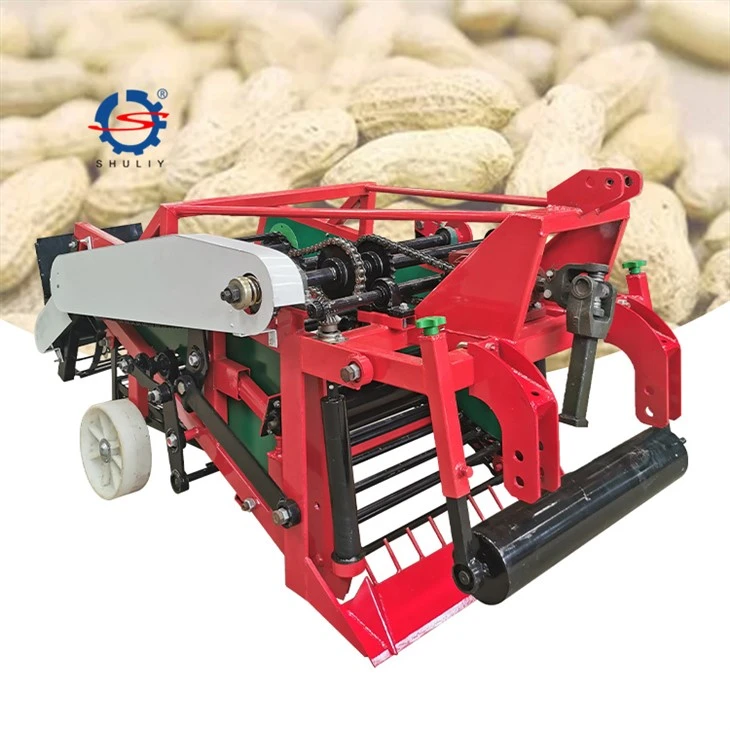

2 Row Peanut Digger



The 2 row peanut digger machine adopts a scientific and reasonable design, using gears and chains for transmission, running smoothly without power loss, and doubling the efficiency. Powerful functions, can harvest lodged and wheel-crushed peanuts, bearings are dustproof and waterproof, can work in rainy weather and muddy environment



Model	HS-800
Efficiency	1300-2000㎡/day
Harvesting rate	≥98%
Breaking Rate	≤1%
Cleaning Rate	≥95%
Weight	280kg
Horsepower	30HP
Harvester width	two rows
Distance between rows	750-800mm
Row spacing	180-250mm
Dimension	2100*1050*1030mm



1. Light and vibration-free operation, no grass blocking, fast soil leakage, high harvest rate, and no damage to peanuts.
2. The 2-row peanut digger is easy to install and disassemble, and can be installed and disassembled in 10 minutes. The machine is a debugging-free model and can be used at home after installation.
3. The excavation blade and transmission chain of this machine are specially made with high damage resistance. Generally, users replace the blade once every two years, and the chain can be replaced by a buckle.
4. This 2 row peanut digger machine is an integrally welded frame, integrally welded plow assembly, and integral gearbox structure, all sprockets are fully sealed with double bearings, movable suspension arms, and anti-drop chains.



The power is output through the power output shaft of the four-wheel tractor, driving the gear reducer, which transmits the power to the clamping chain. When 2 row peanut digger working, the seedlings are first concentrated in the center of the conveying chain by the seedling supporter, and the seedlings are clamped by the conveying chain and slowly lifted, and the peanuts are separated from the soil. Then the soil sticking to the peanuts is further thrown off by the seedling puller, and the separated peanuts are thrown behind the machine and placed neatly.



1. What services do we have?
If the customer comes to China, we will pick you up at the airport or the high-speed rail station, and then send you to the hotel.
2. Online presale services
a. super and solid quality
b. fast and punctual delivery
c. standard export package or customized
3. After-sale services
a. assistance to build your project
b. repairing and maintenance with any problems in the warranty.
c. installation and clerks training
d. spare parts and wearing parts for free or with a big discount
e. any feedback on the machine can be given to us so that we can give you the best service
4. Other cooperation services
a. technology knowledge share
b. factory building advising
c. business expansion advising
